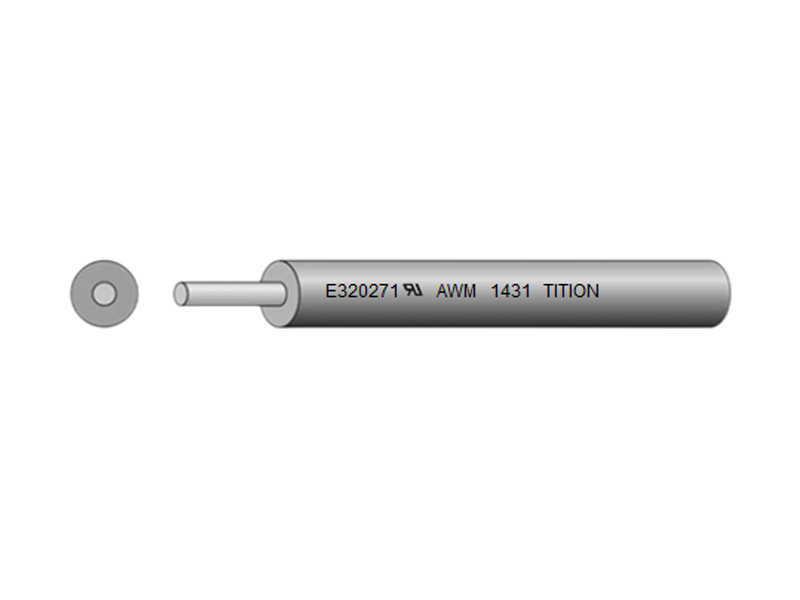

说明
额定温度：：105℃
额定电压：：600V
标准：：UL758，，，UL1581及CSA22.2 No.210.2
导体:绞合铜线镀锡铜丝
绝缘:交联聚氯乙烯
通过VW-1及CUL FT1笔直耐燃连线
环保要求：：RoHS & REACH;
应用
用作电机引线或电器内部接线
参数
| Conductor | Insulation | Maximun Resistance at 20℃ | ||||
| 导体 | 绝缘 | |||||
| AWG | No./mm | Nom.Dia. | Nom.Thick. | Average | 20℃最大导体电阻Ω/km | |
| 线规 | 线数/线径 | 外径 | 平均厚度 | 参考外径 | ||
| mm | mm | mm | ||||
| 2 | 665/0.254 | 8.16 | 1.500 | 11.40 | 0.5548 | |
| 4 | 420/0.254 | 6.47 | 1.500 | 9.70 | 0.882 | |
| 6 | 266/0.254 | 5.15 | 1.500 | 8.40 | 1.403 | |
| 7 | 208/0.254 | 4.58 | 1.500 | 7.80 | 1.768 | |
| 8 | 168/0.254 | 4.10 | 1.125 | 6.60 | 2.23 | |
| 10 | 105/0.254 | 3.01 | 0.760 | 4.80 | 3.546 | |
| 12 | 65/0.254 | 2.37 | 0.760 | 4.10 | 5.64 | |
| 14 | 41/0.254 | 1.88 | 0.760 | 3.60 | 8.96 | |
