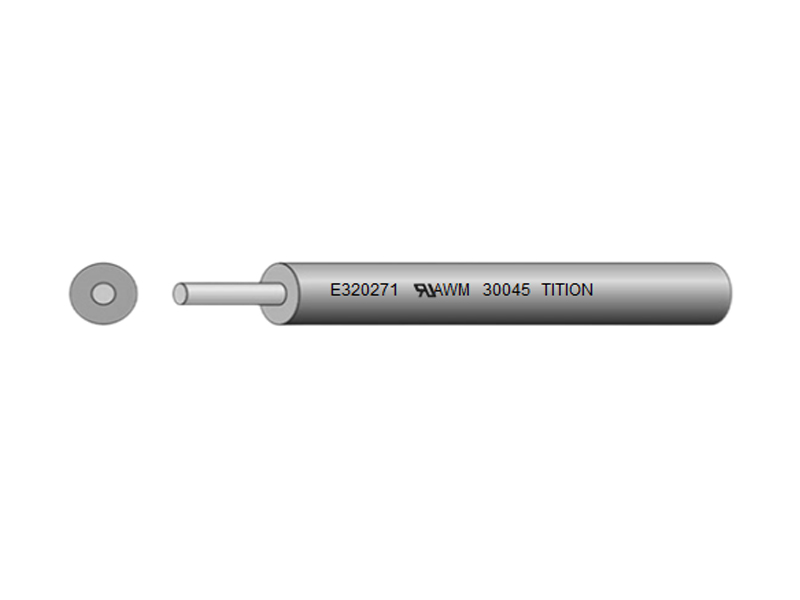

说明
额定温度：：150℃
额定电压：：1500V
标准：：UL758，，，UL1581及CSA22.2 No.210.2
导体:绞合铜线镀锡铜丝
绝缘:硅橡胶
通过VW-1及CUL FT1笔直耐燃连线
环保要求：：RoHS & REACH;
应用
完全关闭的电器内部接线
参数
| Conductor | Insulation | Maximun Resistance at 20℃ | ||||
| 导体 | 绝缘 | |||||
| AWG | No./mm | Nom.Dia. | Nom.Thick. | Average | 20℃最大导体电阻Ω/km | |
| 线规 | 线数/线径 | 外径 | 平均厚度 | 参考外径 | ||
| mm | mm | mm | ||||
| 2/0AWG | 1372/0.254 | 11.58 | 2.40 | 16.80 | 0.2766 | |
| 1/0AWG | 1045/0.254 | 10.12 | 2.40 | 15.20 | 0.3487 | |
| 2AWG | 665/0.254 | 8.16 | 2.20 | 12.80 | 0.5548 | |
| 3AWG | 526/0.254 | 7.30 | 2.20 | 12.00 | 0.6996 | |
| 4AWG | 420/0.254 | 6.47 | 1.90 | 10.50 | 0.882 | |
| 5AWG | 331/0.254 | 5.79 | 1.90 | 9.80 | 1.113 | |
| 6AWG | 266/0.254 | 5.15 | 1.90 | 9.20 | 1.403 | |
| 7AWG | 208/0.254 | 4.58 | 1.90 | 8.60 | 1.768 | |
| 9AWG | 131/0.254 | 3.55 | 1.00 | 6.00 | 2.813 | |
| 10AWG | 105/0.254 | 3.01 | 1.00 | 5.40 | 3.546 | |
| 11AWG | 82/0.254 | 2.66 | 1.00 | 4.90 | 4.48 | |
| 12AWG | 65/0.254 | 2.37 | 1.00 | 4.60 | 5.64 | |
| 13AWG | 52/0.254 | 2.12 | 1.00 | 4.30 | 7.10 | |
| 14AWG | 41/0.254 | 1.88 | 0.60 | 3.40 | 8.96 | |
| 15AWG | 33/0.254 | 1.69 | 0.60 | 3.20 | 11.30 | |
| 16AWG | 26/0.254 | 1.50 | 0.60 | 3.00 | 14.60 | |
| 17AWG | 21/0.254 | 1.34 | 0.60 | 2.80 | 18.30 | |
| 18AWG | 41/0.16 | 1.18 | 0.60 | 2.60 | 23.20 | |
| 19AWG | 33/0.16 | 1.06 | 0.60 | 2.40 | 29.10 | |
| 20AWG | 26/0.16 | 0.94 | 0.60 | 2.30 | 36.70 | |
| 22AWG | 17/0.16 | 0.76 | 0.60 | 2.10 | 59.40 | |
